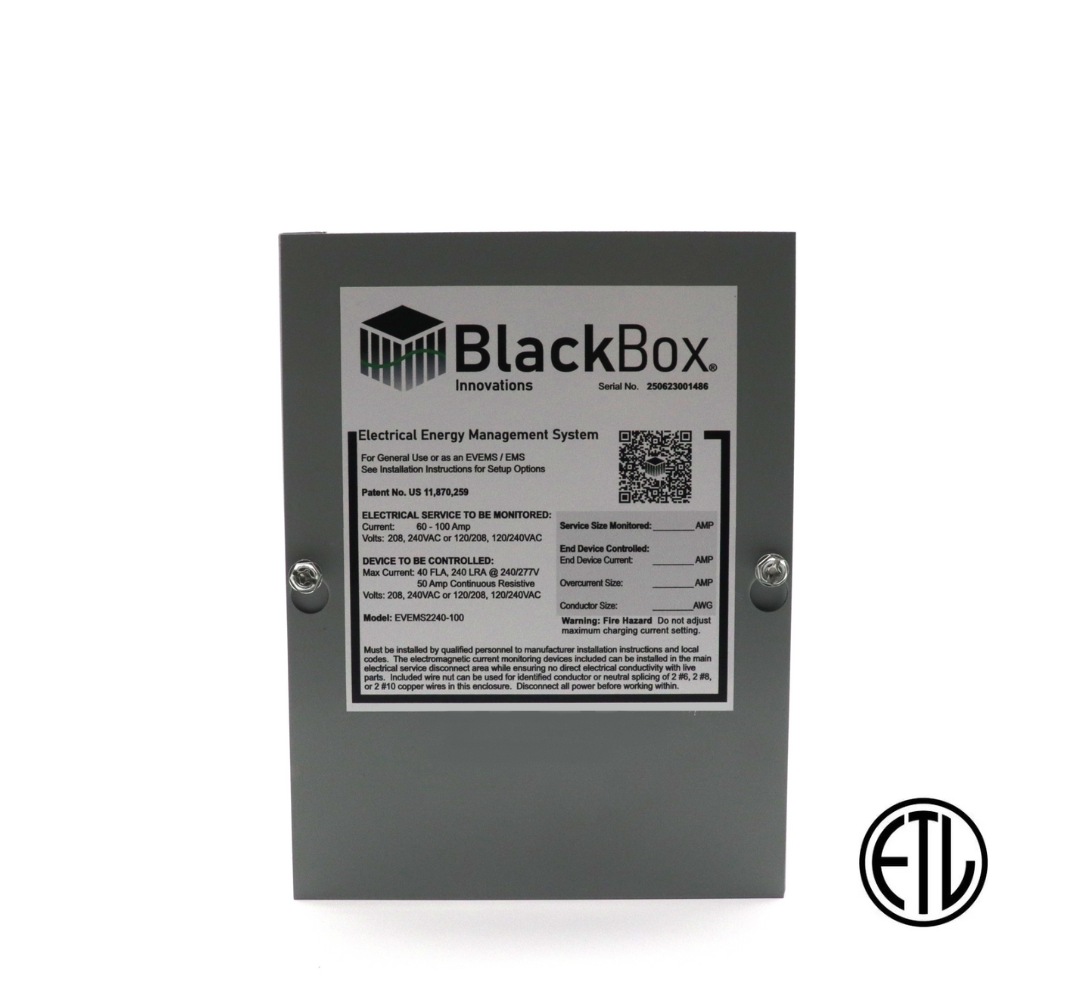

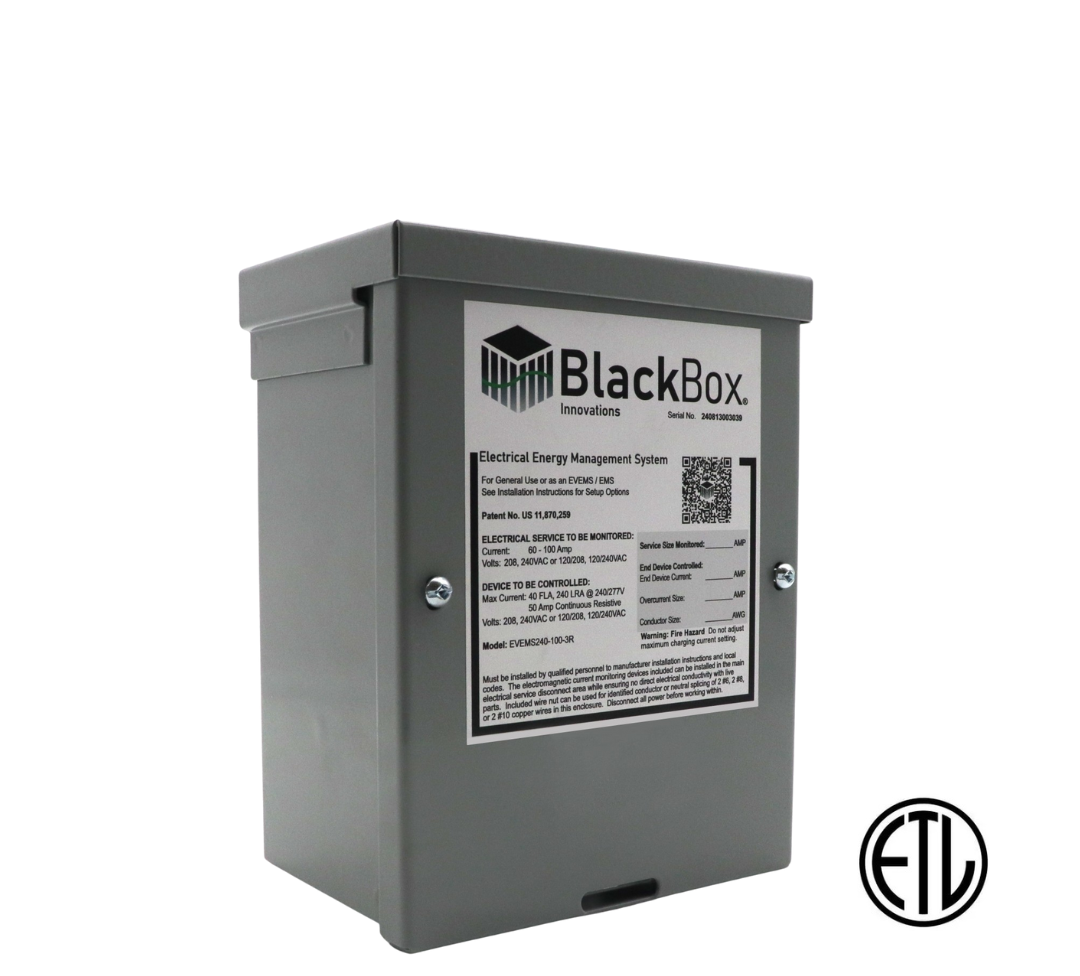

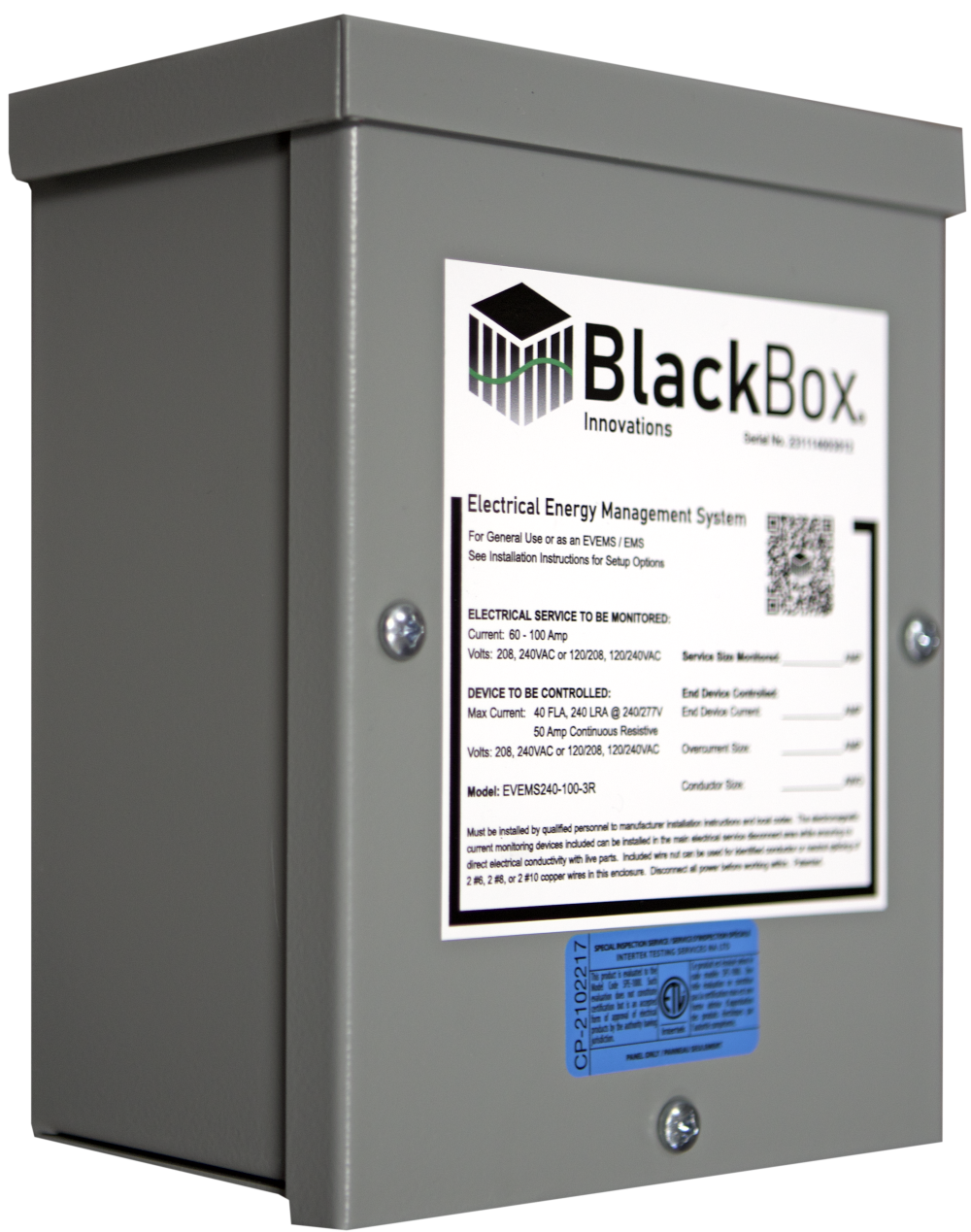

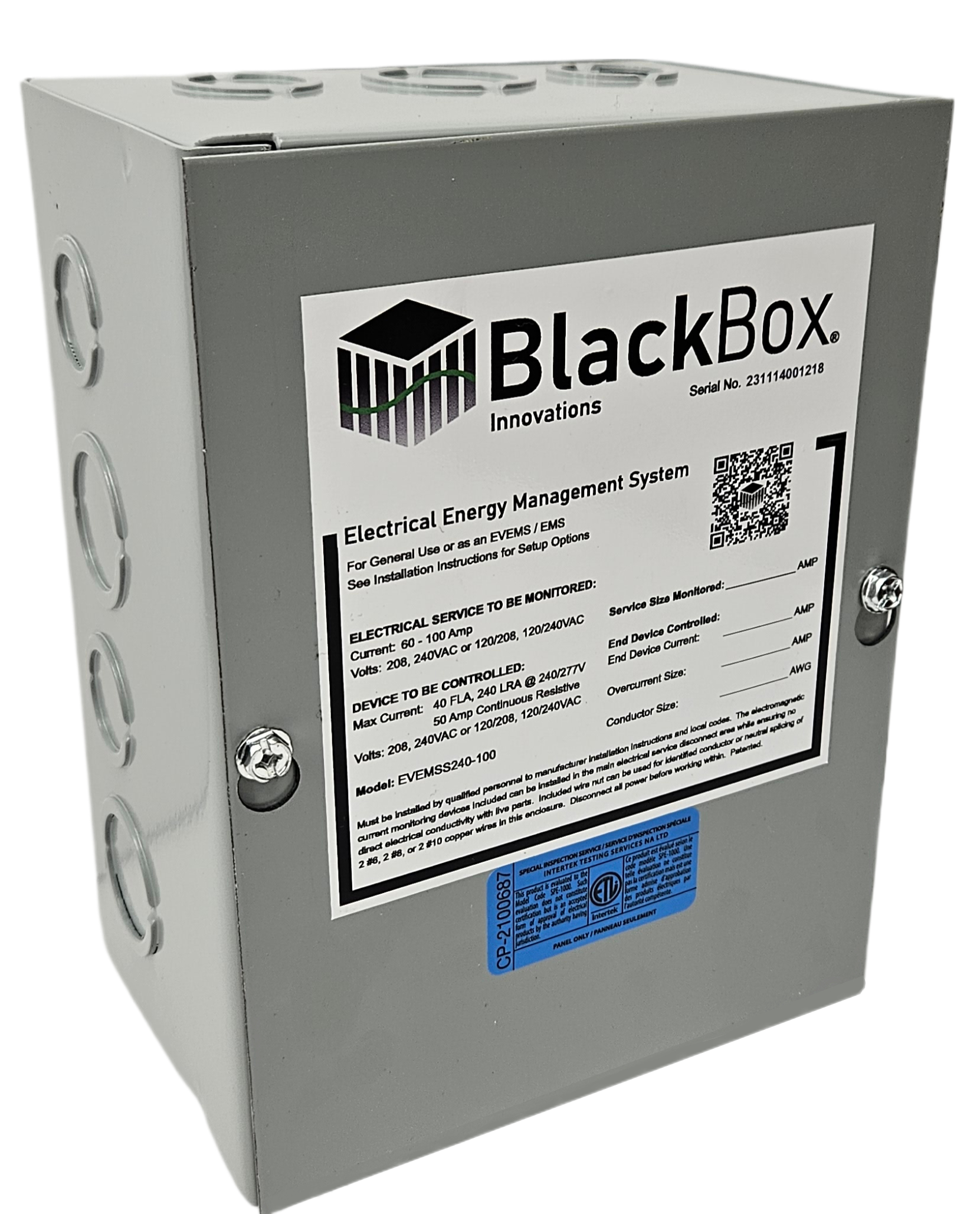

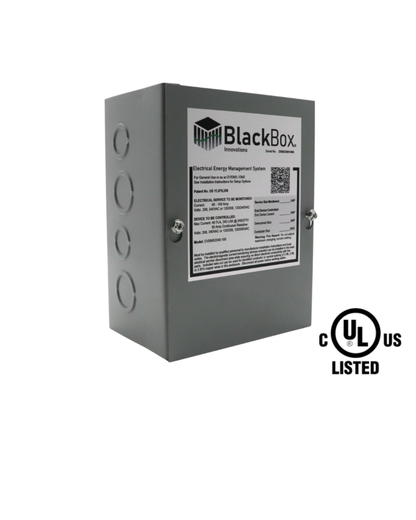

Electric Vehicle Energy Manager for Service Sizes 60A to 100A and up to a 60A Charger (EVEMS240-100 NEMA 1 & 3R)

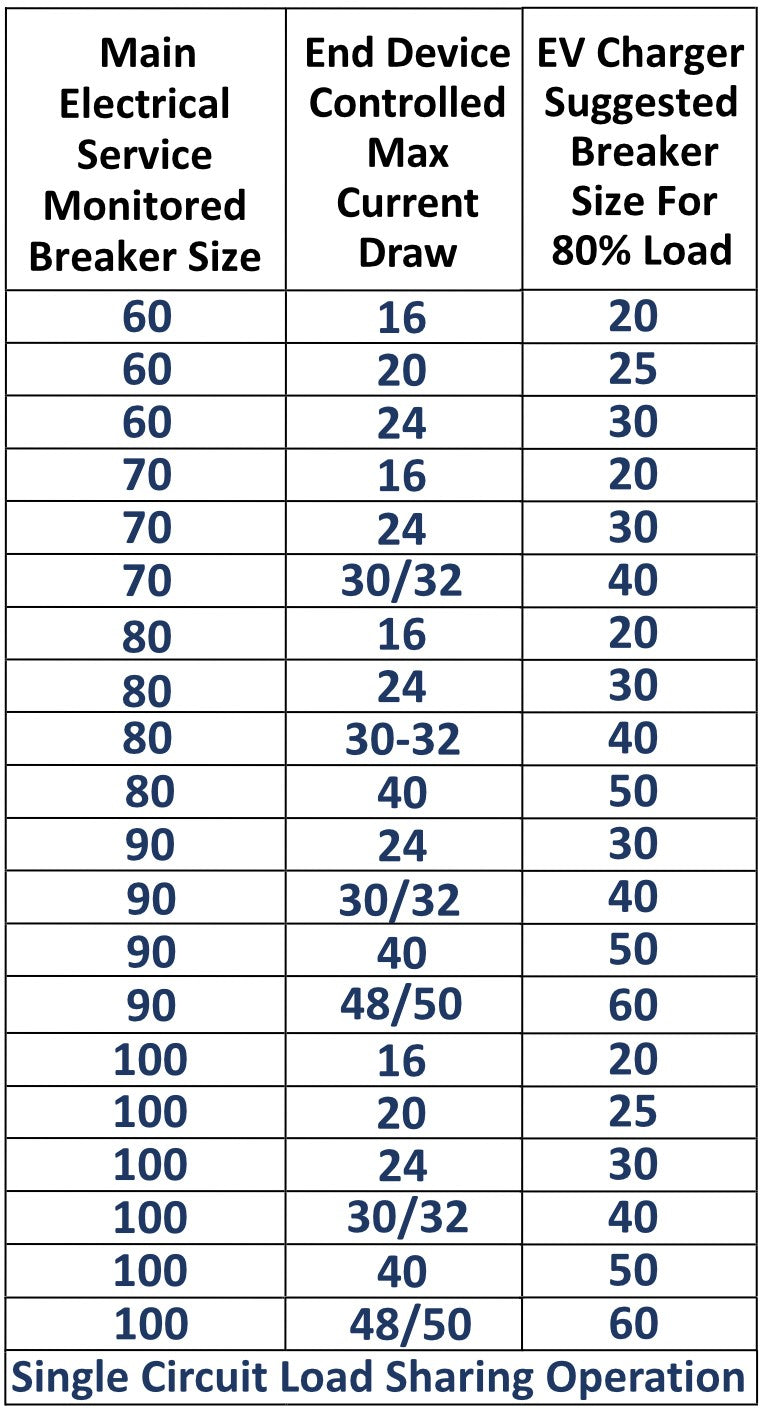

EVEMS/EMS for the following combinations:
Rating Of or Above Device Controlled (EV Charger) |
EV Charger Suggested Breaker |
60A Main Breaker |
70A Main Breaker |
90A Main Breaker |
100A Main Breaker |
4.8KW - 20A |
25 |
YES |
YES |
NO |
NO |
5.76KW - 24A |
30 |
YES |
YES |
NO |
YES |
7.2/7.6KW - 30/32A |
40 |
NO |
NO |
YES |
YES |
9.6KW - 40A |
50 |
NO |
NO |
YES |
YES |
11.5KW/12KW - 48/50A |
60 |
NO |
NO |
NO |
YES |
These can be used to control general-purpose devices that can tolerate load shedding with the same settings above, up to a max of 40FLA/50A. When using with general-purpose devices select the settings row with the rating just above what the device rating is.
Both 80% and 100% rated EV breaker settings are available for most combinations.
Link to installation instructions and specifications sheets for more information.
Buy 8 or more and get an additional 10% volume discount at checkout.
